Power Distribution Units
PowerFlo Solutions offers top of the line PDU products for the datacenter marketplace. We are utilizing the highest quality made in USA magnetics, state of the art manufacturing and best in class power distribution products to give our customers a robust, short lead time Power Distribution Unit to fill their needs in a growing, rapidly changing critical power industry.

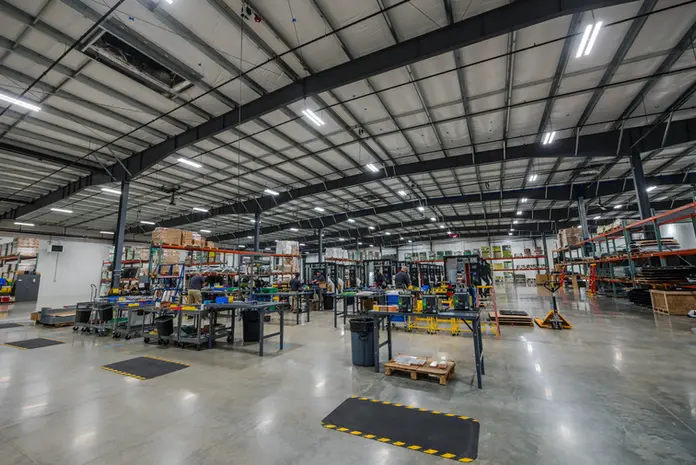

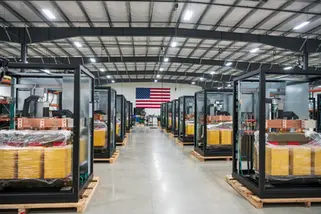

Our PDU product line-up offers customization to give our customers the flexibility to use one solution for multiple sites and arrangements. Our magnetics, our design, manufactured and fully tested in Marietta, OH for every PDU.
.webp)
800-1200kVA PDU
50-800kVA PDU
kVA
50-800
Primary
480
Secondary
120/208 | 240/415
Dual 120/208 | Dual 240/415
Distribution
-
Eight 600A or smaller subfeeds
-
Twelve 250A subfeeds
Height
84"
(2140 mm)
Width
60"
(1524 mm)
Depth
42"
(1066.8 mm)
Weight
Up to 9000 lbs
[2495 kg]
kVA
800-1200 Subfeed
Primary
480
Secondary
240/415
Distribution
-
Twelve 250A subfeeds
-
Eight 400/600A subfeeds
-
Six 800A subfeeds
-
Four 1200A subfeeds
Height
84"
(2140 mm)
Width
90"
(2286 mm)
Depth
48"
(1219.2 mm)
Weight
Up to 9000 lbs
[2495 kg]
kVA
50-800 kVA Subfeed
Primary
480
Secondary
120/208
240/415
Dual 120/208, 240/415
Distribution
Twelve 250A subfeeds
Eight 600A subfeeds
Height
84"
(2140 mm)
Width
60"
(1524 mm)
Depth
48"
(1219.2 mm)
Weight
Up to 7800 lbs
(2495 kg)
kVA
800-1200 Subfeed
Primary
480
Secondary
240/415
Distribution
Twelve 250A subfeeds
Eight 400/600A subfeeds
Six 800A subfeeds
Four 1200A subfeeds
Height
84"
(2140 mm)
Width
90"
(2286 mm)
Depth
42"
(1066.8 mm)
Weight
Up to 9000 lbs
(2495 kg)
Remote Power Panel
The PowerFlo Solutions (PFS) RPP is a streamlined remote power panel with a 84-circuit distribution panel and optional main circuit breaker (MCB). It is a single input power source system that can be arranged back to back arrangements, or against a wall. The core functionality of the PFS RPP is to distribute power to a large number of branch circuits, while also enabling selective trip coordination to downstream loads. Our RPP is ideal for applications that require robust power distribution in a slim wall-mounted, space-saving design such as data centers and large industrial facilities. The PFS RPP includes critical safety features that help to protect users and equipment from falling and other electrical hazards. If you are looking for a simple, safe, high quality and quick lead time power distribution solution, look no further than the PFS RPP.
System Input Voltage
120/208V, 3-phase, 4-wire + Ground
240/415V, 3-phase, 4-wire + Ground
Number of Wires
4
System Frequency
60Hz
Input Terminals Rating - Phase
400A
Input Terminals Rating - Neutral
800A
Input Terminations
Two-hole Mechanical Lug Terminals
Number of Inputs
1
Branch Panelboard
Single, 84 circuit
RPP 400A
High Density Rack PDU
High Density Rack PDU for power hungry AI applications. 12 x 50 amp breakers and 24 x C19 outlets or 18 x 50 amp breakers and 36 x C19 outlets.
Coming Soon!
AMP Breakers
12 x 50 or 18 x 50
Outlets
24 x C19 or 36 x C19
